Product Description

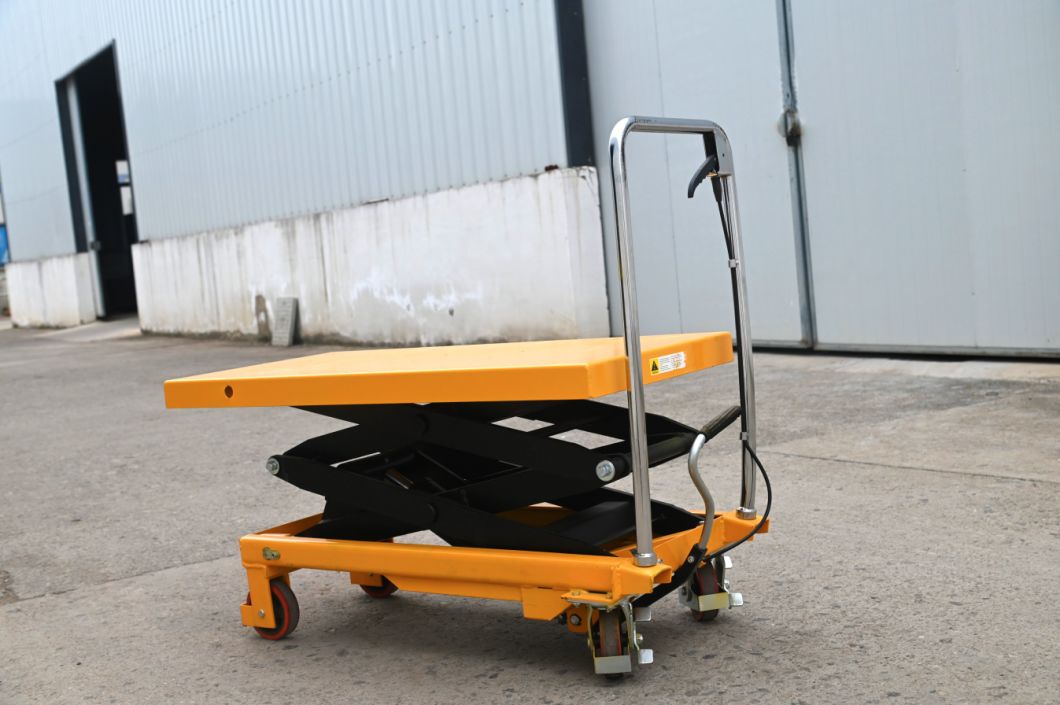

Hydraulic Lift Table designed for work platforms, capable of
lifting loads up to 350kg.
Key features:
- 1. Overload protection function for enhanced safety.
- 2. Reliable hydraulic performance ensures durability and a long
service life.
- 3. Easy-to-operate ascending and descending control device
eliminates the need to turn a fixed handle.
- 4. CE-compliant spacing between moving parts prevents finger
pinching accidents, prioritizing safety.
- 5. Equipped with a wheel guard bracket and emergency brake on the
rear wheel to quickly stop wheel rotation during emergencies.
| Model | | ASPS150 | ASPS350 | ASPS500 | ASPS800 |
| Load capacity | kg | 150 | 350 | 500 | 800 |
| Max.lift height | mm | 1100 | 1300 | 1550 | 1500 |
| Min.height of table | mm | 302 | 350 | 410 | 475 |
| Lifting height | mm | 798 | 950 | 1025 | 1025 |
| Table size | mm | 700*450*35 | 910*500*52 | 1010*520*60 | 1220*610*60 |
| Foot pedal cycles to max height | | <=30 | <=60 | <=70 | <=70 |
| Net weight | kg | 64 | 105 | `172 | 172 |
| Carton size | mm | 860*485*300 | 985*519*350 | 1370*645*470 | 1370*645*470 |
| Total height | mm | 920 | 970 | 969 | 961 |
| Tyre size | mm | φ100 | φ127 | φ127 | φ150 |
AIDA is a high-tech enterprise integrating R&D, production and
service, as a solution provider of professional material
handling equipment and flexible intralogistics system for all
scenarios.
Offer products including series of
electric pallet truck, electric stacker and a series of hand pallet
truck, semi electric
stacker and reach stacker and other material handling equipment. Widely used in logistics and warehousing, retail
and wholesale, medicine, food, chemical, electronics, machinery,
automobile and other industries.
AIDA have established a strict quality assurance system and
have passed ISO9001,ISO14001,SGS,and CE certification.
It is a national high-tech enterprise with more than 40 national
patents, which has been rated as "Small giant enterprise in
Hunan Province", "The first batch of pilot enterprises for the
integration of advanced manufacturing and modern service
industries in Hunan Province","Demonstration enterprise of
intelligent manufacturing in Changsha City"," Hunan Enterprise
Technology Center".
"Energy saving, environmental protection, high efficiency and
intelligence" is the design concept of AIDA products, and it is
committed to becoming a smart digital expert for intralogistics.
